Recommended usage
- The suitable water pressure for SANSUI® SⅠ is 0.2-0.8 kg/cm². The excessive water pressure may damage the tube.
- Use a filter to prevent tube clogging in the feed of soiled water.
- If a filter cannot be installed, provide a drainage at the tube-end and discharge sludges from the tube periodically for trouble free irrigation.
- To prevent the rolling of SANSUI® SⅠ by wind, use a wire bended in the U shape for fixing the tubes.
Specifications
Items
- Tube Width (flattened)
- Standard water feed rate
- Material
- Tube unit length
- Packing
Specifications
- 53mm
- 130-480cc/min m
- Special Polyethylene
- 100m/roll
- 5 rolls/box
Water feed rate
(cc/min m)
Tube length
Water pressure
|
30mm |
50mm |
100mm |
| 0.2 kg/cm² |
200 |
180 |
130 |
| 0.8 kg/cm² |
480 |
440 |
340 |

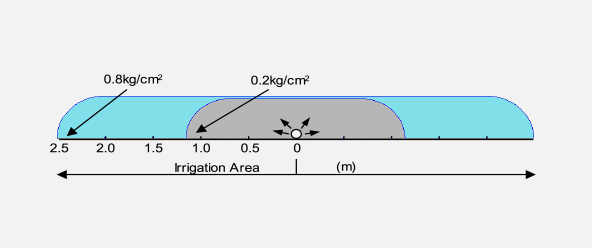

Water presssure and irrigation range
For good coverage maximum tube interval is 3.6m (12ft) apart in oil palm nursery

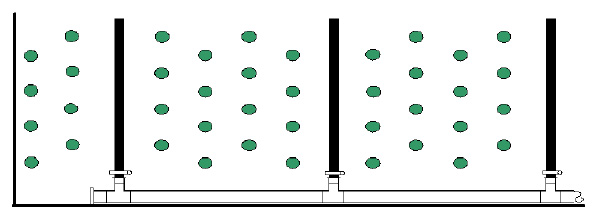

Layout for main nursery Sansui SⅠ and polybag
